Barcode Scanner Upgrade

HMI Software Upgrade for Steeger USA Braiders

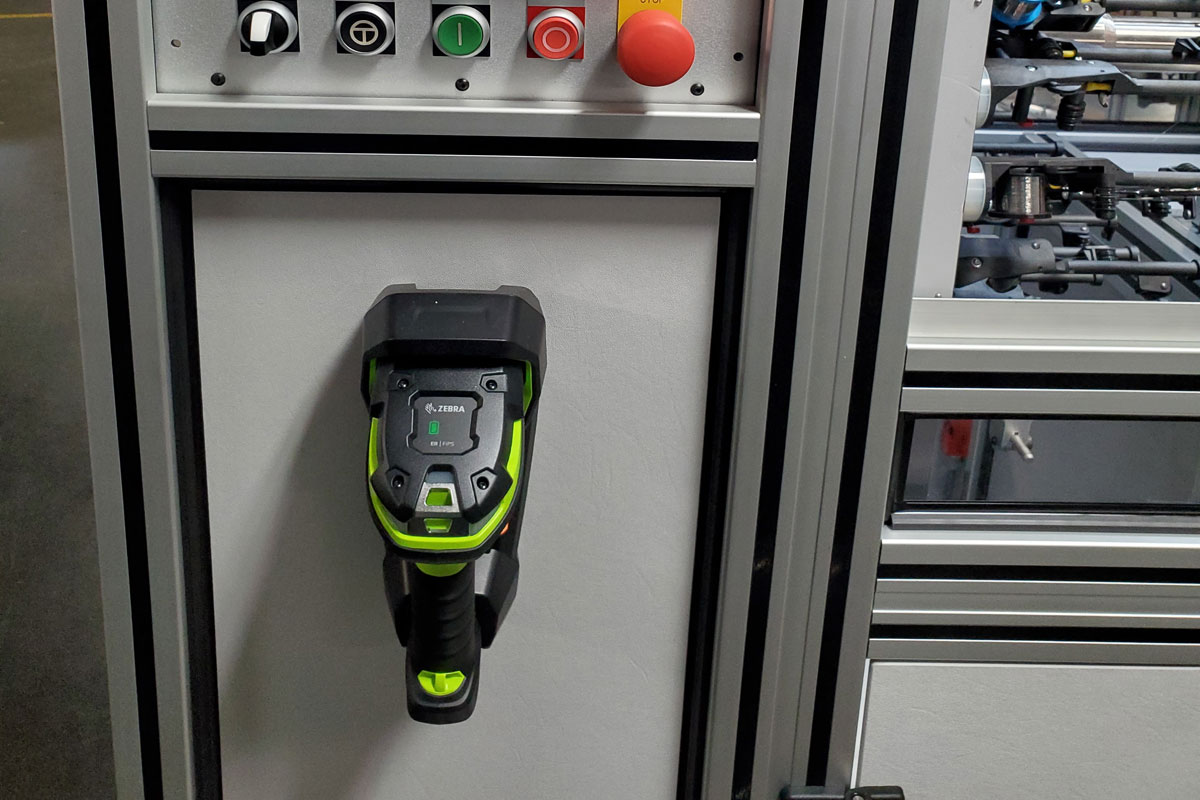

The Zebra ZEB-DS3678ER3RF50AS1 handheld barcode reader is a powerful tool designed to streamline operations by seamlessly integrating barcode scanning capabilities into your system. Its advanced functionality ensures efficient recipe selection and loading directly from your PLCs, improving productivity and reducing errors in manufacturing processes.

Key Features of the Zebra Barcode Reader

1. Barcode Compatibility:
   • Capable of reading 1D, 2D, and 3D/QR barcode formats for versatile application.
2. Recipe Selection and Loading:

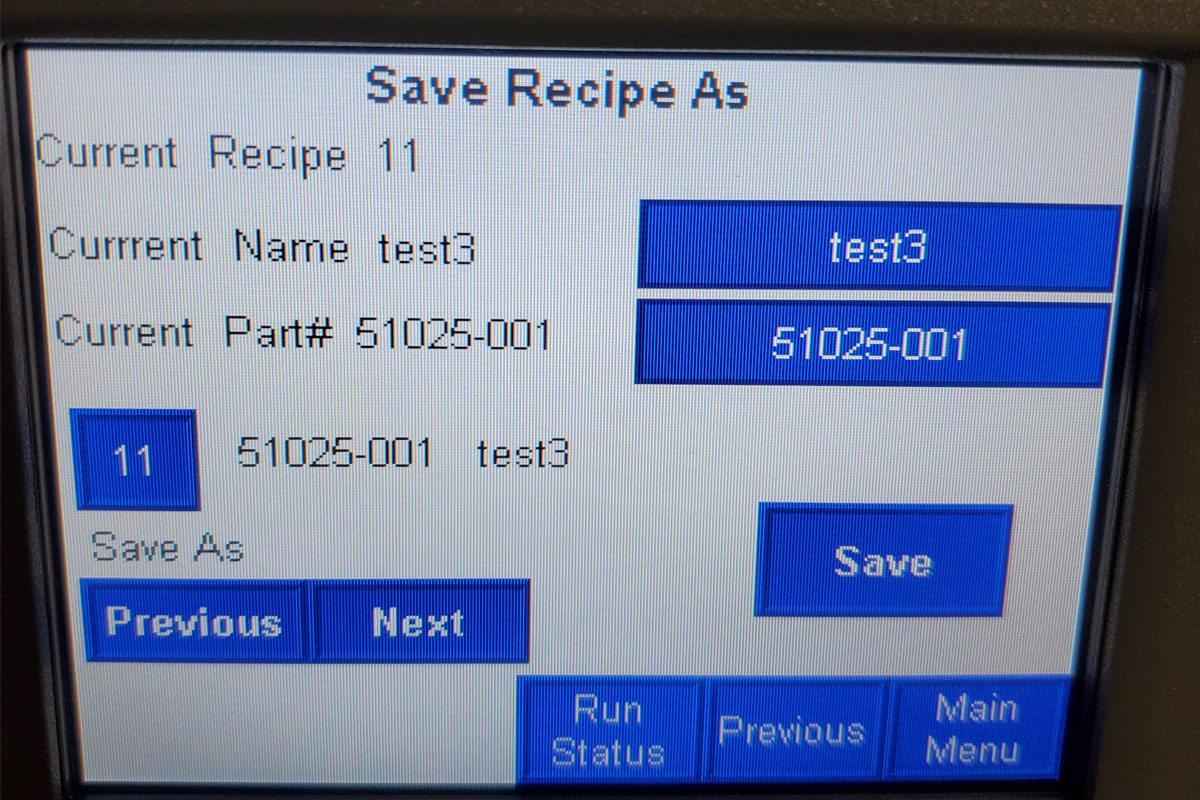

   • Scans barcode inputs to select and load existing recipes stored in PLC memory.
   • Example: Quickly identify and load recipes by part number or name, such as “50894-003”.
3. HMI Integration:

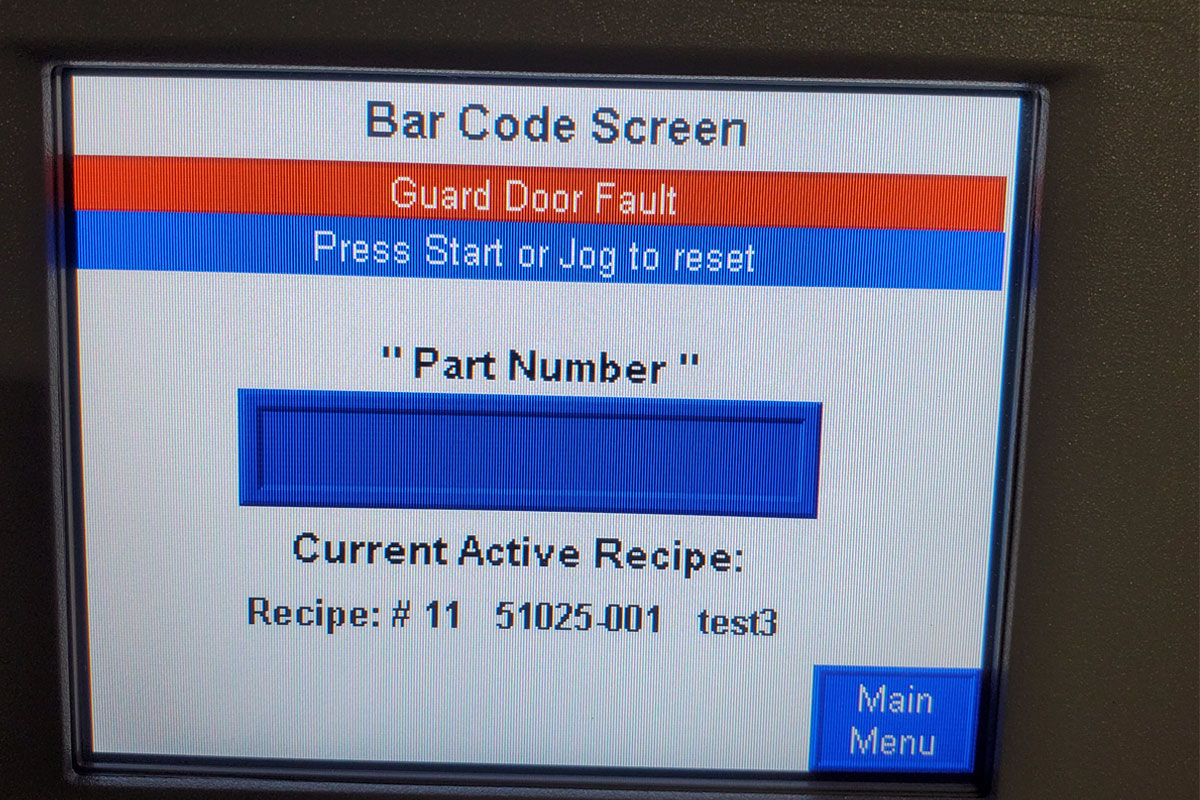

   • A dedicated screen will be added to the HMI to display barcode reader status and provide control options.
   • Enhances operator visibility and ease of use.
4. Error Handling and Notifications:
   • Displays error messages on the HMI if:
     • The part number scanned cannot be found in the PLC memory.
     • A read error occurs during the scanning process.

Benefits of the Upgrade

• Improved Efficiency:
  • Streamline the recipe selection process by eliminating manual entry.
  • Reduce downtime with quick and accurate barcode scanning.
• Enhanced Accuracy:
  • Minimize the risk of human error in part number identification.
  • Ensure precise recipe loading for consistent manufacturing results.
• Seamless Operator Experience:
  • User-friendly HMI interface provides real-time status updates and error notifications.
  • Intuitive controls make system management straightforward.

Why Upgrade Your Braider Software?

Modernizing your braiding machine software unlocks new capabilities and improves overall functionality. Benefits include:

• Enhanced Performance: Achieve smoother operations with optimized software controls.
• Improved Efficiency: Reduce setup times and increase production speeds with intuitive software tools.
• Real-Time Monitoring: Gain actionable insights into machine performance and process parameters.
• Future-Ready Compatibility: Ensure your braiders are equipped to handle advanced materials and techniques.

For Service and Support

Call 864-472-7000 or Email service@machinesolutionshost.com
